Casa /Prodotti/Motore elettrico BLDC/Insulation Class F 80mm Square Flange 3000rpm 314W High Torque High Power DC Brushless Motor

Insulation Class F 80mm Square Flange 3000rpm 314W High Torque High Power DC Brushless Motor

100 Pieces
MOQ
$49.20(100 - 300 Pieces) $48.14(301 - 500 Pieces) $44.87(>=501 Pieces)
prezzo
Insulation Class F 80mm Square Flange 3000rpm 314W High Torque High Power DC Brushless Motor
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Warranty: 3months-1year
Model Number: EL80BLS86
Usage: BOAT, Electric Bicycle, FAN, Home Appliance, Automation
Type: 80mm series brushless motor
Torque: 1.00Nm
Construction: Permanent Magnet
Commutation: Brushless
Protect Feature: insulation class F
Speed(RPM): 3000rpm
Continuous Current(A): 15.1A
Efficiency: high efficiency
Motor type: DC brushless motor
Motor diameter: 80mm
Motor length: 86mm
Motor pole: 10 poles
Rated voltage: 24VDC
Rated speed: 3000rpm
Rated torque: 1Nm
Rated power: 314W
Motor application: electric bicycle
Customization: Both performance and dimension can be customized
Certificazione: ce, RoHS
Informazioni di base
Certificazione: ce, RoHS
Model Number: EL80BLS86
Termini di pagamento e spedizione
Supply Ability: 500000 Piece/Pieces per Year
Descrizione di prodotto
Product Description

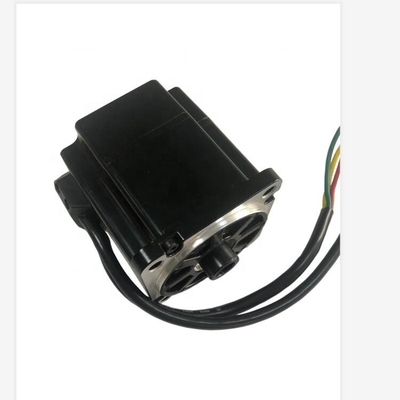

80mm BLDC motor

Model: EL80BLS86
Frame size:80mm
The motor has high torque and high efficiency, it's used in electric bicycle, the dimension and performance can be customized according to requirement.
Product Paramenters
Unit
Value
Rated voltage
VDC
24
No-load speed
rpm
3496±10%
Rated speed
rpm
3000±10%
Rated torque
Nm
1
Rated current
A
15.1
Rated power
W
314
Outside Drawing
Details Images
Company Profile

The ELMEQ Group includes companies in Denmark, Germany and China. The headquarter ELMEQ A/S is located in Denmark, offering innovation, development and logistics all based on 20 years knowhow and experience. ELMEQ GmbH was founded in Germany 2011 and is working closely with their headquarters in Denmark and is able to offer innovation, development and logistics services.The ELMEQ Group works with a large range of high quality manufacturing plants of mechanical products. Through the ELMEQ Group you get access to development departments with more than 20 engineers and a production capacity higher than 40 million items per year. Part of the production is approved for automotive manufacture and TS16949 approved.

Changzhou ELMEQ Motion Mechanical Co.,Ltd.(ELMEQ Asia) was founded in 2008 located in China and is able to offer, innovation, development, logistics services and production of customized electro mechanical items. The product range includes motors, gearmotor actuators, assemblies and customized motor solutions.
Our Services
- Quality assurance
- Proactive behavior and innovative thinking
- Technical consultancy and support in pre- & after sales
- Competitive prices and on-time deliveries
- Professional, cooperative partners in Europe and Asia
We look forward to creating new ideas and innovative products with your company.
FAQ
1.How to choose a suitable electric motor?
If the usage with defined voltage,speed and torque ,size of the motor are clear, just find out the close performance one. if not
sure, ask for our help.

2.How can I get the sample motor to check quality and do performance test?
When the requirements are clear to us,we can provide sample.

3.What is your term of delivery?
We accept EXW, FOB or CIF,DAP to door. or anything is the most convenient or cost effective for you. we have many logistics
partners and couriers with who cooperated and experienced many years.

4.What about the lead time for the mass production?
Honestly, it depends on the order quantity and the season you place the order,and our production schedule and process status.

5.Can you provide detailed technical data and drawing?
Yes, we can. Please tell us which product you need and the applications, we will send the detailed technical data and drawing to
you for your evaluation and confirm.

6.Can I visit your factory before we place an order?
Yes, you are welcome to visit our factory. We are very pleased if we have the chance to know more about each other.

7.How to control the products quality in your company?
With professional quality team, advanced product quality planning, strict implementation, continuous improvement, the quality of
our products is well controlled and consistent.
