Casa /Prodotti/motore trifase/Electric motor (Y2, YE2, YE3) series explosion-proof three-phase cast iron body

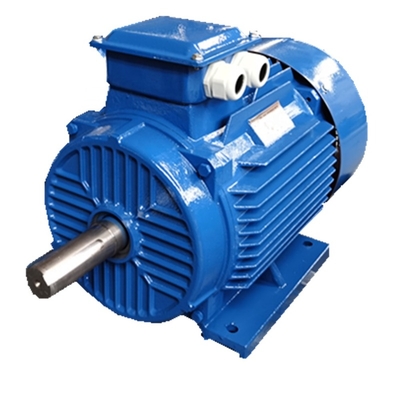

Electric motor (Y2, YE2, YE3) series explosion-proof three-phase cast iron body

10.0 Pieces
MOQ
Electric motor (Y2, YE2, YE3) series explosion-proof three-phase cast iron body
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Warranty: 1years
Model Number: Y2-215S-4
Type: Induction Motor
Phase: Three-phase
Protect Feature: Explosion-proof
AC Voltage: 208-230 / 240 V
Application: General Machinery
Informazioni di base
Model Number: Y2-215S-4
Termini di pagamento e spedizione
Descrizione di prodotto
Product Overview

Electric Motor

Three-phase asynchronous motor is by simultaneously access 380V three-phase AC power supply (phase difference of 120 degrees) a type of motor power, because the rotor of three-phase asynchronous motor and stator rotating magnetic field in the same direction, different speed into rotation, there is slip, so called three-phase asynchronous motor.
FEATURES AT A GLANCE
Y2 Series Three phase Asynchronous Motors (frame 80-355mm, power 0.8-315KW) are the renewal and upgrading products of Y series,
are defined as totally enclosed fan cooling, squirrel cage type, and noted for its novel design, nice appearance, low noise, high
efficiency, large torque, excellent starting performance, compact structure, easy maintenance etc.




PRODUCT SPECIFICATIONS
Seq.
Item Code
Rated Power (kW)
Seq.
Item Code
Rated Power (kW)
1
801-2
0.75
56
250M-4
55
2
802-2
1.1
57
250M-6
37
3
801-4
0.55
58
250M-8
30
4
802-4
0.75
59
280S-2
75
5
802-6
0.55
60
280M-2
90
6
90S-2
1.5
61
280S-4
75
7
90L-2
2.2
62
280M-4
90
8
90S-4
1.1
63
280S-6
45
9
90L-4
1.5
64
280M-6
55
10
90S-6
0.75
65
280S-8
37
11
90L-6
1.1
66
280M-8
45
12
100L-2
3
67
315M-2
132
13
100L1-4
2.2
68
315L1-2
160
14
100L2-4
3
69
315L2-2
200
15
100L-6
1.5
70
315S-4
110
16
112M-2
4
71
315M-4
132
17
112M-4
4
72
315L1-4
160
18
112M-6
2.2
73
315L2-4
200
19
132S1-2
5.5
74
315S-6
75
20
132S2-2
7.5
75
315M-6
90
21
132S-4
5.5
76
315L1-6
110
22
132M-4
7.5
77
315L2-6
132
23
132S-6
3
78
315S-8
55
24
132M1-6
4
79
315M-8
75
25
132M2-6
5.5
80
315L1-8
90
26
132S-8
2.2
81
315L2-8
110
27
132M-8
3
82
315S-10
45
28
160M1-2
11
83
315M-10
55
29
160M2-2
15
84
315L1-10
75
30
160L-2
18.5
85
315L2-10
90
31
160M-4
11
86
355M1-2
220
32
160L-4
15
87
355M2-2
250
33
160M-6
7.5
88
355L1-2
280
34
160L-6
11
89
355L2-2
315
35
160M1-8
4
90
355M1-4
220
36
160M2-8
5.5
91
355M2-4
250
37
160L-8
7.5
92
355L1-4
280
38
180M-2
22
93
355L2-4
315
39
180M-4
18.5
94
355M1-6
160
40
180L-4
22
95
355M1-6
185
41
180L-6
15
96
355M2-6
200
42
180L-8
11
97
355L1-6
220
43
200L1-2
30
98
355L2-6
250
44
200L2-2
37
99
355M1-8
132
45
200L-4
30
100
355M2-8
160
46
200L1-6
18.5
101
355L2-8
200
47
200L2-6
22
102
355M1-10
110
48
200L-8
15
103
355M2-10
132
49
225M-2
45
104
355L-10
160
50
225S-4
37
105
180L1-2
30
51
225M-4
45
106
200L2-2
45
52
225M-6
30
107
225M-2
55
53
225S-8
18.5
108
250M-2
75
54
225M-8
22
109
280M-2
110
55
250M-2
55
110
280M-2
132
SALES AND SERVICE NETWORK
FAQ
Q： Do you provide samples？
A： Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A:Payment>=1000USD, 30% T/T in advance ,balance before shippment.
